10 ton High Speed Hydraulic presses manufacturer in China.
MEILI C-type Hydraulic Press is a kind of multifunctional machine which has strong generality. It is suitable for the press fitting of shaft components and axle sleeve parts as well as the movements of coining and overprinting. It can also be used to press powder and plastic products which the requirements are not strict. At the same time, it mainly applies to the fields of machine tool, engineering machinery, electrical components, bearings, washing machine, automobile parts and motor components. It can even be used as assembly line. The pressure, stroke, and time of pressure maintaining can be regulated.
Our product offerings include:
Multi-action Presses
C-Frame Presses (1-300 tons)
4-Post Presses (up to 1,200 tons)
H-Frame Presses(up to 1,200 tons)
Service
Maintenance
Spare Parts
Features:

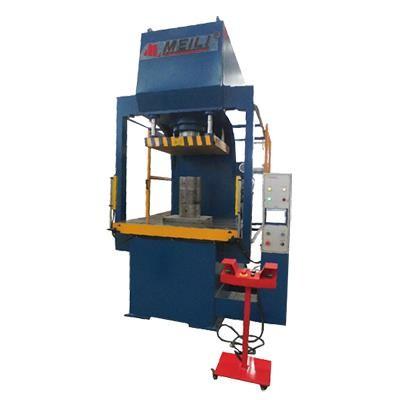

• This structure of this C Frame press looks like letter "C" and all parts and installed in the machine body which facilitate easy and safe operation.
• C Frame high strength structure design with three sides open for easy material loading and product unloading as well as easy connecting with other corollary equipment.
• This C Frame hydraulic punching press can be tailor made to meet different application requirements.
| Description | Unit | 10T | 16T | 25T | 40T | 63T | 100T | 200T | 250T | 315T | 400T |
| Nominal Force | KN | 10 | 16 | 25 | 40 | 63 | 100 | 200 | 250 | 315 | 400 |
| Table size | L-R | mm | 500 | 600 | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| F-B | mm | 440 | 500 | 600 | 550 | 600 | 600 | 650 | 650 | 700 | 700 |
| Slider | L-R | mm | 400 | 400 | 450 | 500 | 500 | 500 | 700 | 800 | 800 | 800 |
| F-B | mm | 300 | 350 | 350 | 400 | 450 | 450 | 550 | 650 | 700 | 700 |
| Hydraulic cushion | Force | T | | 500 | 600 | 700 | 700 | 700 | 700 |
| Stroke | mm | 400 | 400 | 450 | 450 | 500 | 500 |
| Max opening height | mm | 500 | 550 | 600 | 700 | 800 | 800 | 800 | 800 | 900 | 900 |
| Stroke of slider | mm | 300 | 350 | 350 | 400 | 500 | 500 | 500 | 500 | 500 | 500 |
| Throat Depth | mm | 250 | 280 | 280 | 300 | 300 | 325 | 325 | 400 | 400 | 400 |
| Down speed of slider | mm/s | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 120 | 120 |
| Working speed of slider | mm/s | 10-15adjustable |
| Return speed of slider | mm/s | 120 | 120 | 120 | 120 | 120 | 120 | 110 | 110 | 87 | 85 |
| Operation Height | mm | 710 |
| Powder of motor | KW | 2.2 | 2.2 | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 11 | 18.5 | 22 |
| Total weight | T | 1 | 1.5 | 2 | 2.5 | 3.5 | 4.5 | 7.5 | 9.6 | 15 | 20 |
Contact MEILIPRESS if your business:
Struggles with accuracy, quality or repeatability with your current machines.And want a new one.
Product Tags:
|
|

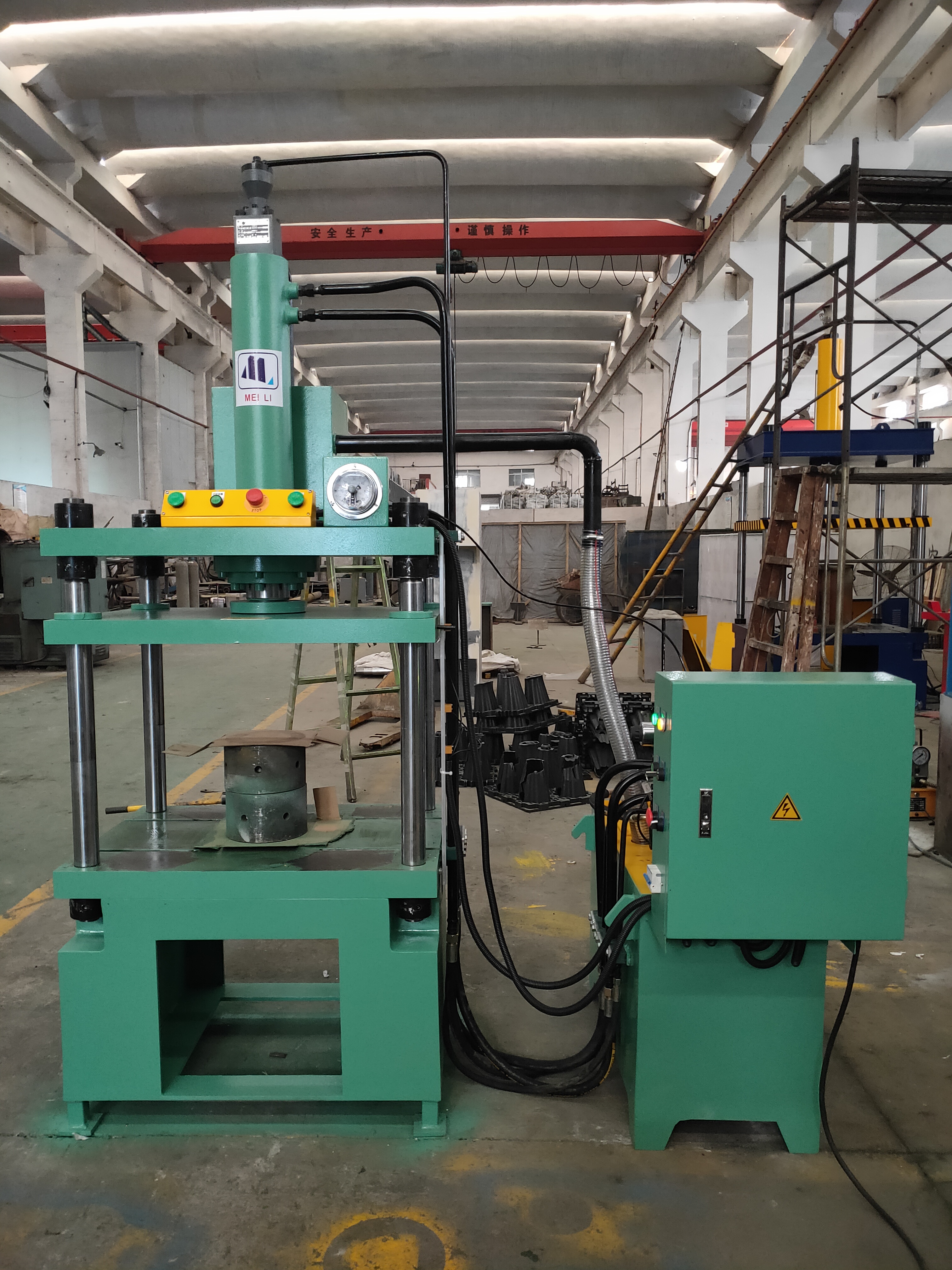

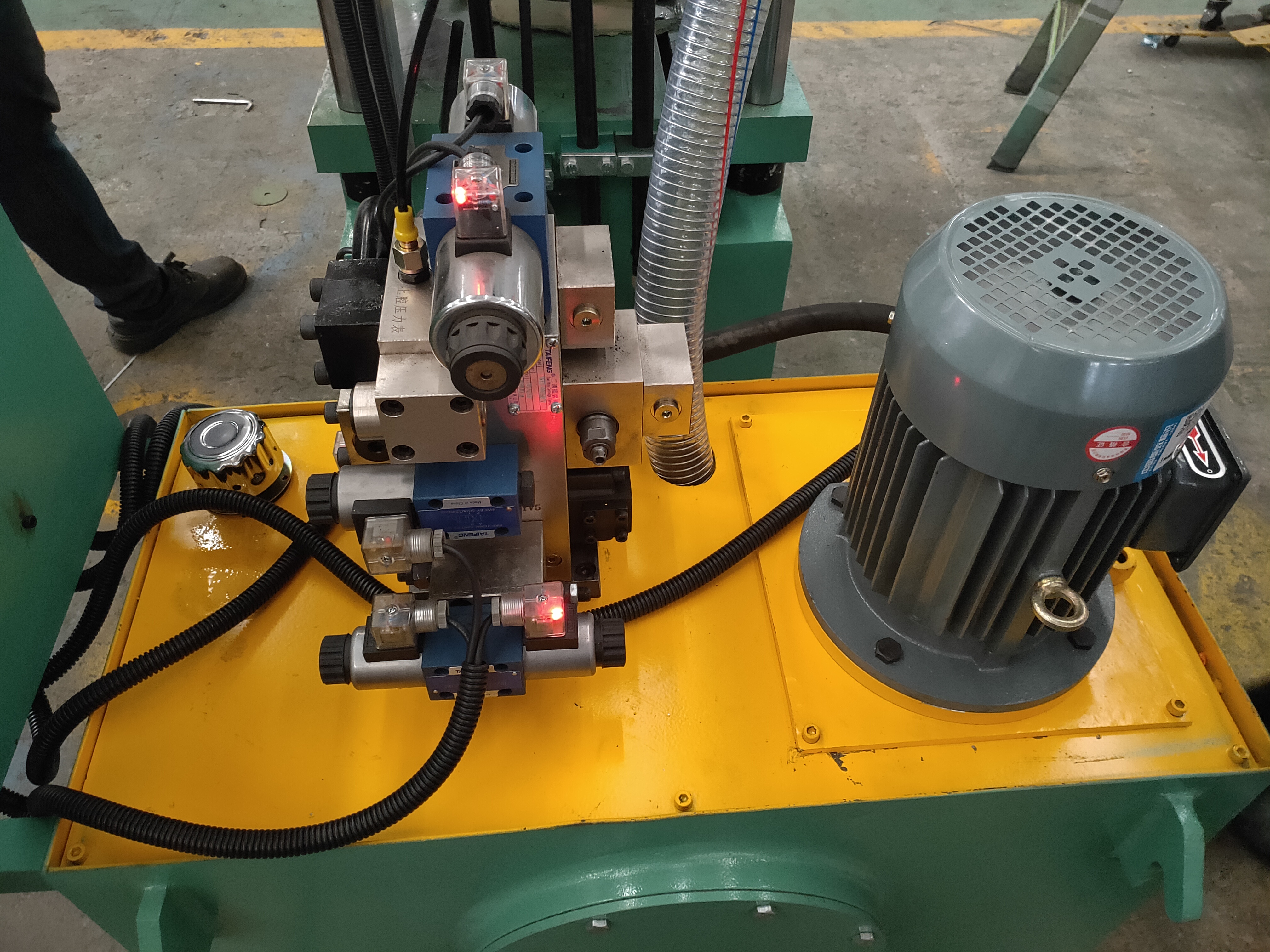

4 Post High Speed Hydraulic Press Machine with TPC PLC Moto Pump Images
|
